Portable EV charger is an EV charger that is easy to take and move, it can easily be put in your car’s trunk and easy to use. It has a power plug to connect to the power grid and a vehicle plug to connect to your EV for charging. It has some other names like granny ev charger, travel EV charger or Mobile EV charger.
The power grid voltage of your country or region, as well as the supported power output from the vehicle.

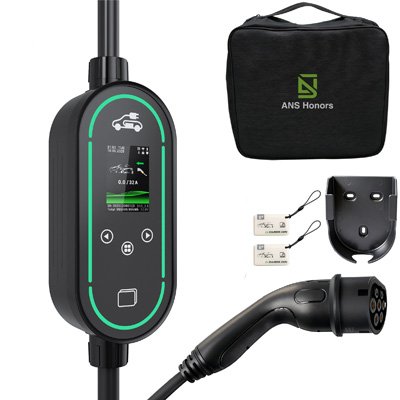

The ANS honors portable EV charger control box system UI supports over 10 languages including English, French, Spanish, and Portuguese, allowing users to customize the UI language based on their needs. It has an elegant and sleek design, the product is equipped with LED indicator lights that enable users to easily track its operating status: yellow (standby), green (charging), and red (fault).
As a professional EV charger manufacturer, we’ve addressed every detail in designing the ANS Honors portable EV charger. Rigorously tested to endure real-world harsh conditions, its control box remains fully functional with no visible damage even after being run over by a 2-ton vehicle

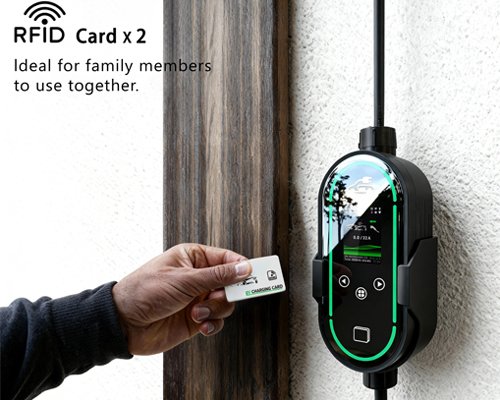

The product supports Wi-Fi and Bluetooth connectivity, as well as the OCPP protocol (Open Charge Point Protocol). It allows access for up to 11 users, enabling users to set multiple electricity rate plans based on local pricing rules and track real-time daily, weekly, monthly, and annual charging records within the app. Additionally, it supports RFID card charging and allows scheduling of up to 3 different charging time slots per week—ensuring users can charge their electric vehicles at the lowest possible rate, save on charging costs, and eliminate repetitive operations.
In terms of charging performance, it supports a maximum output of 7kW for single-phase power and 11kW for three-phase power. Users can adjust the charging current to control the charging power and each adjustment changes the current by 1 ampere. It also features a wide voltage range: 110V-240V for single-phase power and 380V-400V for three-phase power.
Specification | Item | 3.7KW | 7.4KW | 9.6KW | 11KW |
Electrical Parameters | Input/Output Voltage | AC110V/230V | AC110V/230V | AC120V/240V | AC 400V |
Input Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |
Max.Output Power | 1-Phase up to 3.7kW(@230V 16A) | 1-Phase up to 7.4kW(@230V 32A) | 1-Phase up to 9.6kW(@240V 40A) | 3-Phase up to 11kW(@400V 16A) | |
Max.Output Current | 16A for 1-Phase | 32A for 1-Phase | 40A for 1-Phase | 16A for 3-Phase | |
Standard IEC 62752 ;2016/COR1:2019; EN IEC61851-2019; | |||||
Certificate | CE/ROHS/REACH/TUV/IP67 | ||||
Wall Side Plug | Schuko/UK plug/AU-NZ Plug/NEMA5-15/NEMA14-50/Red CEE/Blue CEE, etc | ||||
Vehicle Plug | Type1/Type2/NACS/GBT | ||||
Safety Protection | Over Voltage, Under Voltage, Over Load,Short Circuit, Over Current, Electrical Leakage (RCD, Type B, AC 30mA+DC 6mA), Over-Temperature, Lightning, Grounding Detection | ||||
Function And Accessory | LED Indicators | 30 RGB LED lights | |||
OLED Screen | 1.3-Inch OLED Screen/2.4 Inch OLED Screen/3.0 Inch OLED Screen | ||||
Residual Current Device | Type B | ||||
Current Adjustment | Yes | ||||
Delay Charging Adjustment | Yes | ||||
Charging Control | Plug and Play/RFID Card/Password/App | ||||
External Communication | Wi-Fi, bluetooth | ||||
Language | English, German, Spanish,Portuguese, French,Italian, Russian, Polish, or other customized language | ||||
Working Environment | Protection Degree | IP 67 with control box | |||
Operation Temperature | -30℃～60℃ | ||||
Relative Humidity | ≤95%RH | ||||
Operating Elevation Limit | ≤2000m | ||||
Cooling | Natural Air Cooling | ||||
Standby Power Consumption | <0.5W | ||||
Mechanical Parameters | Charging Cable | 5m (Standard configuration)/10m/15m | |||
Control Box | HxWxD=200mm*90mm*52mm | ||||
Weight | ≤2.9kg | ||||
Colour&Material | Black;Tempered Glass,PC | ||||
We have two elements which decided the speed of charging, first is the output of the EV portable charger and second is the battery capacity of the car. For example, if we use a 7.6kw EV portable charger to charge a car with 80 kw/h capacity battery, it will take around 10~11 hours to get the car fully charged. Time=battery capacity/output of the portable charge.
Usually we do not suggest the users to use the portable chargers under the rains, because most of the IP level of the EV portables is under IP65, and it may leads water/steam/dust to get inside of the control box and damages the board. However, to use our portable charger will have no worries about using it under the rain, our portable charger is certified IP67, which means no water/steam/dust can get into the charger board.
As the technology is going more and more mature, more and more drivers choose portable charger as their car charging device for travel, work, and emergency use, etc. A portable charger comes with a Type A RCD as a standard configuration, which makes sure the safety of charging process. Our portable charger equips with Type A RCD + DC 6ma, which can avoid more electricity risks. However, if you need more functions like smart energy management and customize your charging, we suggest to use a wallbox for daily charging.
No, a portable charger can be used anywhere with a socket. When you use portable charger to charge your car, please make sure that the charger is not under the rain. Also please manage the charging cable properly in case leading any risk of tripping. We prepared a hanger to avoid this risk to happen. After done using the portable charger, we suggest the user can put the mobile charger back to the truck, also the user can storage the charger that the producer may prepare.
Firstly, we need to select the qualified products on the market, for example, portable charger needs to be CE certified in the EU market, UL certified in the USA market, and 3C certified in Chinese market. Second, choose the right standard of the plug standard, EU cars need T2 (IEC 62192, USA cars need J1772, Chinese cars need GBT, etc. Third, choose the right output for your car, if you are car accepts 16A 1 phase electricity, then you need a 3.4kw portable charger, if your car accepts 32A 3 phase electricity, then 22kw portable charger is a good choice.
