The portable EV charger – Economical Version (EVX).
As a professional portable ev charger manufacturer, ANS honors designed this portable ev charger economical version(EVX) base market research and customers’ feedback. and we launched it in the beginning of 2026.
To maintain an outstanding price-to-performance ratio, the following functions are optional:
APP remote control (Bluetooth and WIFI)
Charging mode (APP/Plug and Play)
View charging records on the APP
The basic version, don’t have those functions, if you need those functions, please contact to us for customization.
This portable EV charger supports a maximum output power of 22kW (AC400V, 32A).
If you’re seeking a portable EV charger that focuses purely on core charging functionality—ditching unnecessary extras like RFID, WiFi, Bluetooth, and OCPP—and want to get the most value for your money, this streamlined version is the perfect fit for you.
Ensuring your safe use of our product is ANS Honors’ top priority.
This portable EV charger supports the following protection functions:

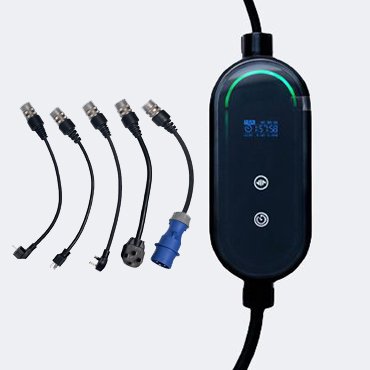

This product adopts a global plug adaptation scheme. The wall-end plug supports UK plug (max. 13A), Schuko (max. 16A), and CEE16/32 (single/three-phase); the vehicle-end plug is compatible with Type 1 (SAE J1772 North American standard), Type 2 (IEC 62196-2 European standard), Type GB (GB/T 20234 Chinese standard), and NACS Tesla (SAE J3400), meeting the charging needs of major regions around the world.
To ensure seamless compatibility in your country or region, the ANS Honors portable EV charger offers a comprehensive range of power plug options, including Schuko, UK, AU-NZ, NEMA 5-15, and NEMA 14-50. For additional specifications or customized plug solutions, please contact our team.
This portable EV charger product supports adjustable charging current by pressing the button in control box before plugging the vehicle-end connector into the vehicle charging socket, with a maximum of 16A (allowing any integer setting from 1A to 16A) or 32A (allowing any integer setting from 1A to 32A). When the charging current is adjusted, the charging power will change synchronously to match the current setting.
| Product Model | EVX03B | EVX07B | EVX10B | EVX11B | EVX22B | |
| Max.output Power | 3.7KW | 7.4KW | 9.6KW | 11KW | 22KW | |
| Electrical Parameters | Input/Output Voltage | AC110V/240V | AC110V/240V | AC110V/240V | AC 400V | AC 400V |
| Input Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |
| Max.Output Power | 1-Phase up to 3.7kW(@230V 16A) | 1-Phase up to 7.4kW(@230V 32A) | 1-Phase up to 9.6kW(@240V 40A) | 3-Phase up to 11kW(@400V 16A) | 3-Phase up to 22kW(@400V 32A) | |
| Max.Output Current | 16A for 1-Phase | 32A for 1-Phase | 40A for 1-Phase | 16A for 3-Phase | 32A for 3-Phase | |
| Standard | EN IEC 62752:2024 (Mode 2 IC-CPD) | |||||
| Certificate | CE/ROHS/IP67 | |||||
| Wall Side Plug | Schuko/UK plug/AU-NZ Plug/NEMA5-15/NEMA14-50/Red CEE/Blue CEE, etc | |||||
| Vehicle Plug | Type1/Type2/NACS/GBT | |||||
| Safety Protection | Over voltage protection, Under voltage protection，Over load protection, Short circuit protection, Leakage protection, Over-temp protection | |||||
| Function And Accessory | LED Indicators | 30 RGB LED lights | ||||
| OLED Screen | 1.47-inch LCD display | |||||
| Residual Current Device | Type A RCD (30mA) with DC 6mA protection | |||||
| Current Adjustment | Yes | |||||
| Delay Charging Adjustment | Yes | |||||
| Charging Control | Plug and Play/App | |||||
| External Communication | Wi-Fi, bluetooth (Optional) | |||||
| Language | English, German, Spanish,Portuguese, French,Italian, Russian, Polish, or other customized language | |||||
| Working Environment | Protection Degree | IP 67 with control box | ||||
| Operation Temperature | -30℃～55℃ | |||||
| Relative Humidity | ≤95%RH | |||||
| Operating Elevation Limit | ≤2000m | |||||
| Cooling | Natural Air Cooling | |||||
| Standby Power Consumption | <0.5W | |||||
| Mechanical Parameters | Charging Cable | 5m (Standard configuration)/10m/15m | ||||
| Control Box | HxWxD=195mm*91mm*49mm | |||||
| Weight | ≤3.0kg | |||||
| Colour&Material | Black; PC(Flame retardant, UV resistant) | |||||
We have two elements which decided the speed of charging, first is the output of the EV portable charger and second is the battery capacity of the car. For example, if we use a 7.6 kW EV portable charger to charge a car with 80 kw/h capacity battery, it will take around 10~11 hours to get the car fully charged. Time=battery capacity/output of the portable charge.
Usually we do not suggest the users to use the portable chargers under the rains, because most of the IP level of the EV portables is under IP65, and it may let water/steam/dust get inside of the control box and damages the board. However, to use our portable charger will have no worries about using it under the rain, our portable charger is certified IP67, which means no water/steam/dust can get into the charger board.
As the technology is going more and more mature, more and more drivers choose portable charger as their car charging device for travel, work, and emergency use, etc. A portable charger comes with a Type A RCD as a standard configuration, which makes sure the safety of charging process. Our portable charger is equipped with Type A RCD + DC 6mA, which can avoid more electricity risks. However, if you need more functions like smart energy management and customize your charging, we suggest to use a wallbox for daily charging.
No, a portable charger can be used anywhere with a socket. When you use portable charger to charge your car, please make sure that the charger is not under the rain. Also please manage the charging cable properly in case leading any risk of tripping. We prepared a hanger to avoid this risk to happen. After done using the portable charger, we suggest the user can put the mobile charger back to the trunk, also the user can store the charger that the producer may prepare.
Firstly, we need to select the qualified products on the market, for example, portable charger needs to be CE certified in the EU market, UL certified in the USA market, and 3C certified in Chinese market. Second, choose the right standard of the plug standard, EU cars need T2 (IEC 62192, USA cars need J1772, Chinese cars need GBT, etc. Third, choose the right output for your car, if your car accepts 16A single-phase electricity, then you need a 3.4kw portable charger, if your car accepts 32A 3 phase electricity, then a 22 kW portable charger is a good choice.
