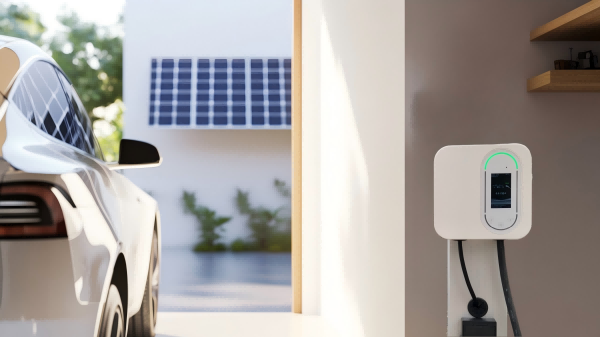

Among the various Honors wall boxes, Power S wall-mounted charger is one of the most popular wall-mounted chargers, designed for easy use and intelligent charging.
The plug-and-play mode provides you with a smooth charging experience. Its standby power consumption is less than 5W, which can save a lot of energy. With 7kw, 11kw and 22kw power output options, and supports Type 1, Type 2 and GBT standards, it is suitable for most electric vehicles, making it an ideal choice for home and commercial use.
The APP model wallbox charger can be controlled by a mobile phone, and all operations need to be performed through the mobile phone; for the basic model wallbox, all operations need to be performed on the screen on the wallbox electric vehicle charger.
The Power S Wallbox charger is equipped with an intelligent management system that can control charging through applications, Bluetooth, or RFID. (You can add up to three cards). RFID cards prevent unauthorized users from using it, enhancing charging security. It has built-in 2.4GHz WiFi Built-in WIFI allows for remote control and online upgrades.
Equipped with various safety protections, such as overload, short circuit, and overvoltage protection. IP65 rated waterproof and dustproof, can maintain stable performance in any weather, even in extreme temperature of -30 ℃ to 60 ℃. Its one click emergency stop function ensures instant safety when needed, realising worry free charging.
APP control enables remote management via smartphone, and the charging period can be adjusted at any time to reduce electricity costs. Real-time monitoring of charging status, display of power, electricity, voltage and other information, to ensure the transparency and safety of the charging process. Analyze power usage data through historical charging records to optimize usage efficiency.
We support ODM/OEM customization to meet your brand needs. Including providing custom logo printing, package design and language options to assure a perfect match with your market needs.
| Specification | Item | 7KW | 11KW | 22KW |
|---|---|---|---|---|
| Electrical Parameters | Input/Output voltage | AC 230V | AC 400V | AC400V |
| Input frequency | 50/60Hz | 50/60Hz | 50/60Hz | |
| Max.output power | 1-Phase up to 7.36kW(@230V 32A) | 3-Phase up to 11kW(@400V 16A) | 3-Phase up to 22kW(@400V 32A) | |
| Max.output current | 32A for 1 Phase | 16A for 3 Phase | 32A for 3 Phase | |
| Standard | IEC 61851 ; GB/T18487 | |||
| Certification | CE, RoHS | |||
| Safety Protection | Over voltage,Under voltage, Over load,Short circuit Leakage,Over-temp,Lightning protection | |||
| Function And Accessory | LED Indicators | Yes | ||
| LCD Screen | 3.0-Inch | |||
| RCD | Type B(AC 30mA+DC 6mA) | |||
| Current Adjustment | Yes | |||
| WIFI/Bluetooth | Yes(WIFI 2.4GHz) | |||
| Emergency Stop Button | Yes | |||
| Relay Adhesion Detection | Yes | |||
| RFID Manageable | Yes | |||
| Working Environment | Protection Degree | IP 65 | ||
| Operation Temperature | -30℃～ 60℃ | |||
| Relative Humidity | ≤95%RH | |||
| Operating Elevation Limit | ≤2000m | |||
| Cooling | Natural Air Cooling | |||
| Standby Power Consumption | ＜5W | |||
| Mechanical Parameters | Charging Cable | 5m (Standard Configuration) | ||
| Control Box | HxWxD=180mm*180mm*70mm | |||
| Weight | ≤6kg | |||
| Colour | Black/White | |||
| Material | PC(Flame Retardant, UV Resistant) | |||
You may want to know these questions, please click the button below and submit, we will reply within 24 hours.
The Power S wallbox charger(APP Model) is the ev charging pile which can be controlled by Phone to set the configuration， Monitor the charger, and other Multiple options. In summary, it is more convenient and Visual.
You can either download our application (EV-chargergo） from Google Store or App Store on Android or iPhone. Then you can connect to the App via Bluetooth or scan a QR code and the instructions can direct you to get it ready successfully.
If you have downloaded the program and don’t know how to use it, don’t worry. Please feel free to contact us at any time.
Yes. The Type of Plug is SAE J1772, IEC 62196-2, and GB/T and App Ev charger can be compatible with that.
In addition to the common charging functions on the market, this Power S charger can also view standby power consumption and can store 30 charging histories. The charging data is clear at a glance.
For more details about this Power S wallbox charger, click the button below to contact us.
